Description

YF GOLD 24V 250 Watt HIGH SPEED POWERFUL HUB MOTOR kit Indian brand.

MOTOR SPECIFICATIONS:
✔️ Usage: Bicycle
✔️ Operating Voltage: 24v
✔️ Working Temperature : -20℃-45℃
✔️ Rated RPM: 150-220rpm .
✔️ Continuous Power Rated & Peak : 250/450w
✔️ Torque (nm) Peak: 38NM
✔️ Efficiency : 90%
✔️ Water & Dust protection Level (IP Rating): IP65
✔️ Weight of motor : 2.8kg
✔️ Maximum Speed : 25km/hr.
✔️ Motor shaft size : 110mm.

CONTROLLER SPECIFICATIONS:
✔️ Voltage: DC24v.
✔️Undervoltage: 21±1v
✔️Phase angle : 120°.
✔️ Current limiting : 14±1A.

BENIFITS:
?? 6 months warranty on each part.
?? High speed motor with more efficiency .
?? With pas sensor speed and range increased upto 20%.
?? Easy and simple connections with technical support.
?? Perfect solution to change your normal bicycle or chain drive electric bicycle into hub drive with existing battery and charger .

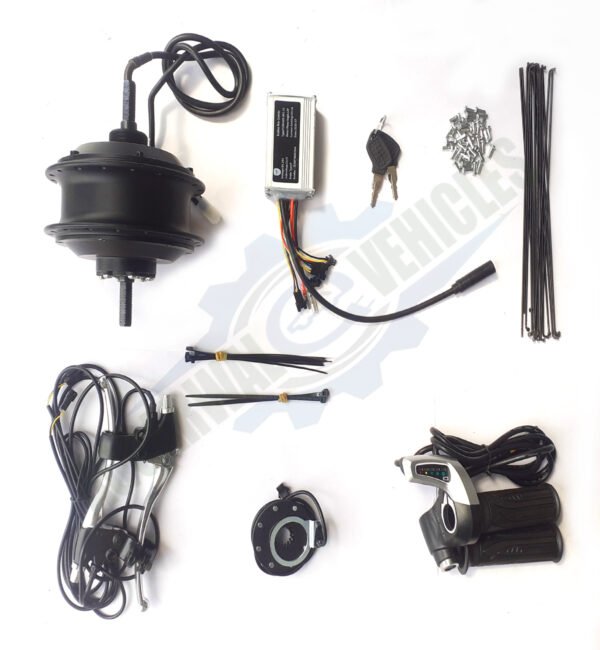

KIT INCLUDES:
? 24v 250w YF GOLD hub motor, ? 24v 250w YF GOLD controller, ? Display Led throttle with key function, ? Brake lever set for autocut, ? Paddle assist sensor (PAS), ? 36 Spokes with nipples,

NOTE:
❌ Battery and charger is not included in this kit.
❌ This kit is not suitable for geared cycles, only suitable for single speed ranger cycles.
